Sinker EDM

Cavities and deep ribs in tool steel, made with electrodes we machine ourselves.

Sinker EDM removes material with a shaped electrode, which means it can produce a cavity or a deep rib that no rotating cutter can reach.

We machine our own electrodes, so the electrode geometry and the cavity geometry stay in one shop — this is what keeps a mould cavity and its core consistent.

What we make

Parts that come through this department.

Mould cavities and coresDeep ribs and narrow slotsHardened tool steel detailsForging and die-casting diesTextured and engraved surfacesComplex internal profiles

Electrodes are machined in-house, which is what keeps a cavity and its core consistent. Electrode count and capability are confirmed per job at quotation stage.

Materials, equipment and inspection

The practical detail.

Materials for this process

Hardened tool steels and alloy steels for cavities and deep ribs, with electrodes machined in-house.

See the full material list →

Equipment and inspection

Die-sinking EDM machines, with electrodes machined in-house. Cavity geometry checked on the CMM before the finishing passes.

Full equipment list → Quality →

Parts we have machined

Real components, photographed on our own bench.

Every photo on this page was taken at the shop. Customer names and part numbers are never published; the process that made each part is.

Machined blockCNC milling

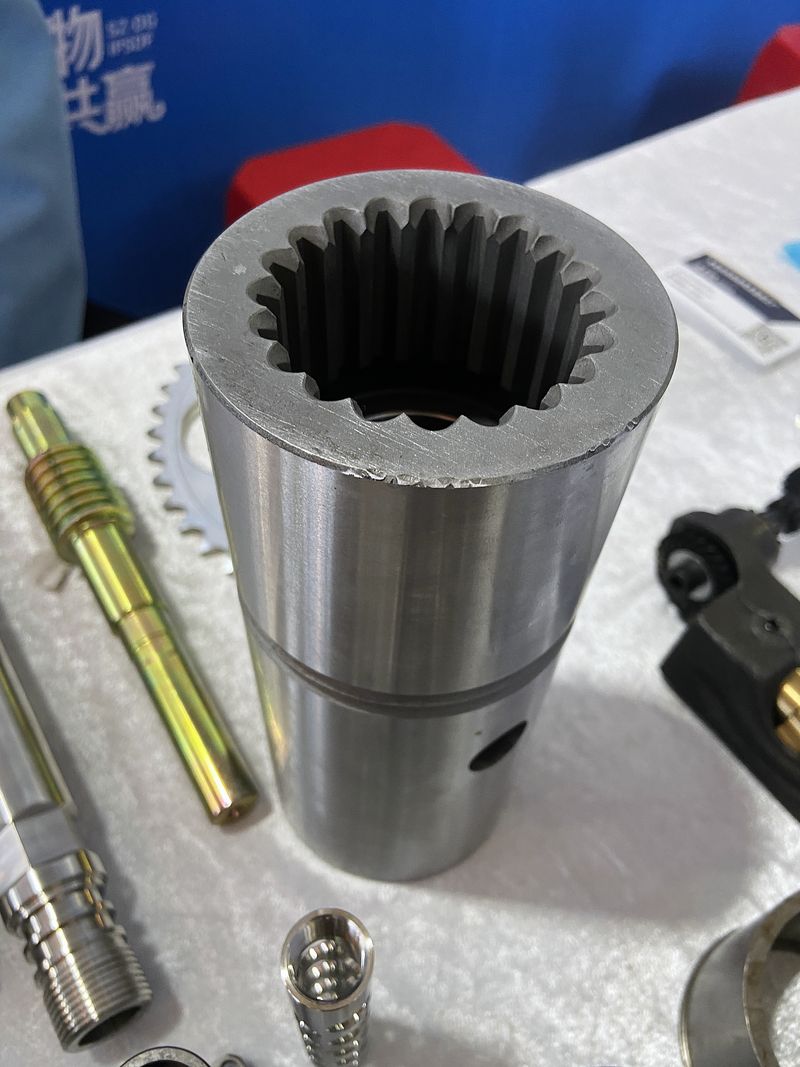

Splined hubGear shaping and milling

Questions

What buyers ask about this process.

What information do you need to quote this?

The drawing, the material, the quantity and the date you need the parts. If a critical feature is unclear, we will ask rather than assume.

Can you work from a sample instead of a drawing?

For simple parts, usually yes. We will measure the sample, send you a drawing for approval, and machine against that.

Sinker EDM — what do you need to know from me?

Anything unusual about how the part is used. Function tells us where to put the effort: a worn surface matters more than a cosmetic one, and knowing that changes how we machine it.
